Termo vadu savienotāji

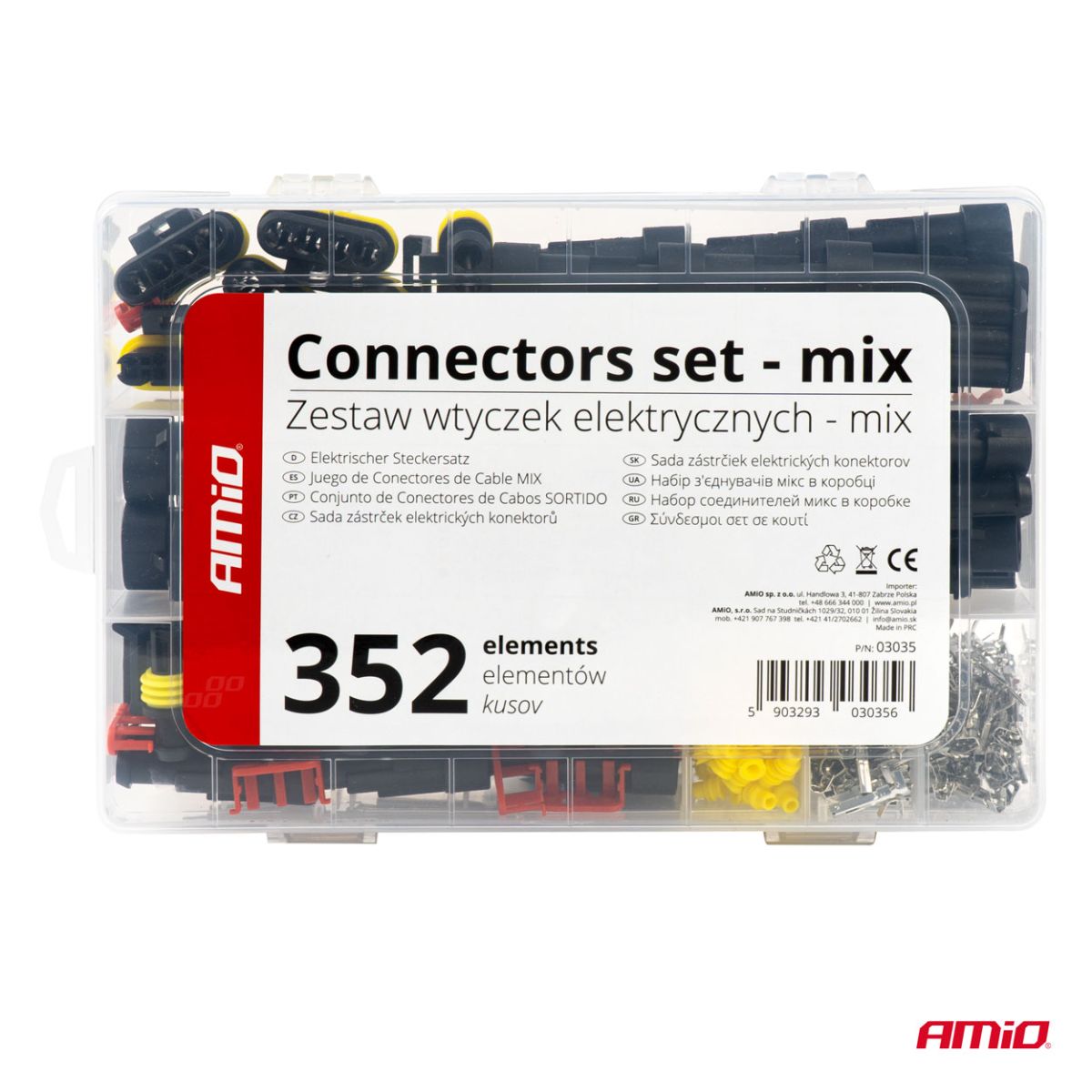

Set of hermetic electrical connectors - 352 pieces.

A set consisting of 352 hermetic connectors in 6 sizes to fit the most common electrical cable diameters.

Used in the automotive industry, including for sensors and devices in cars. They provide very good insulation and sealing.

Available sizes: 1-6-pin superseal connectors fitted with rubber seals guarantee resistance to brake fluids, oils and fuels packaging with compartments

nbsp;

Application:

-motorcycles

-aircraft

-energy networks

- household appliances

-electronic products

-factory areas

nbsp;

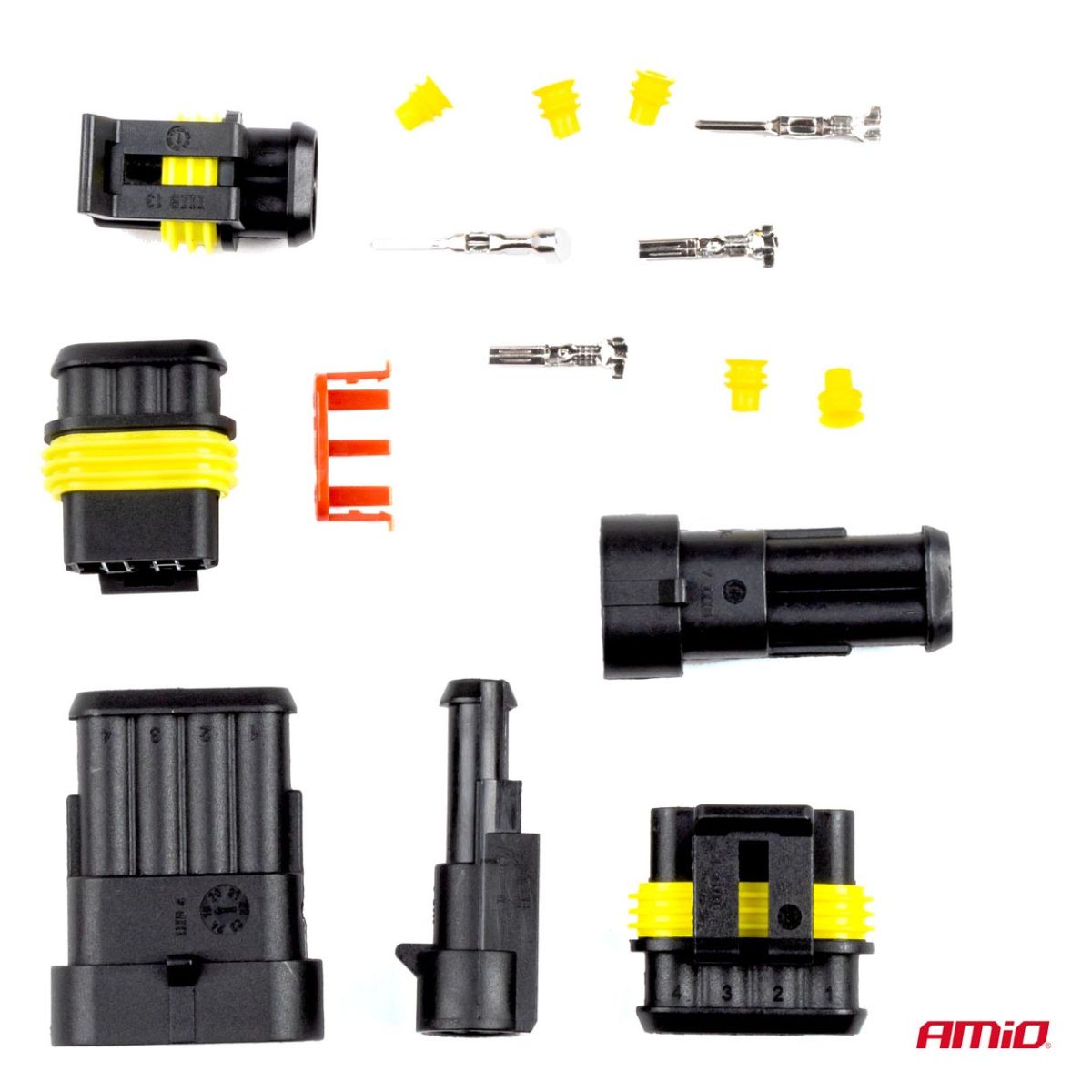

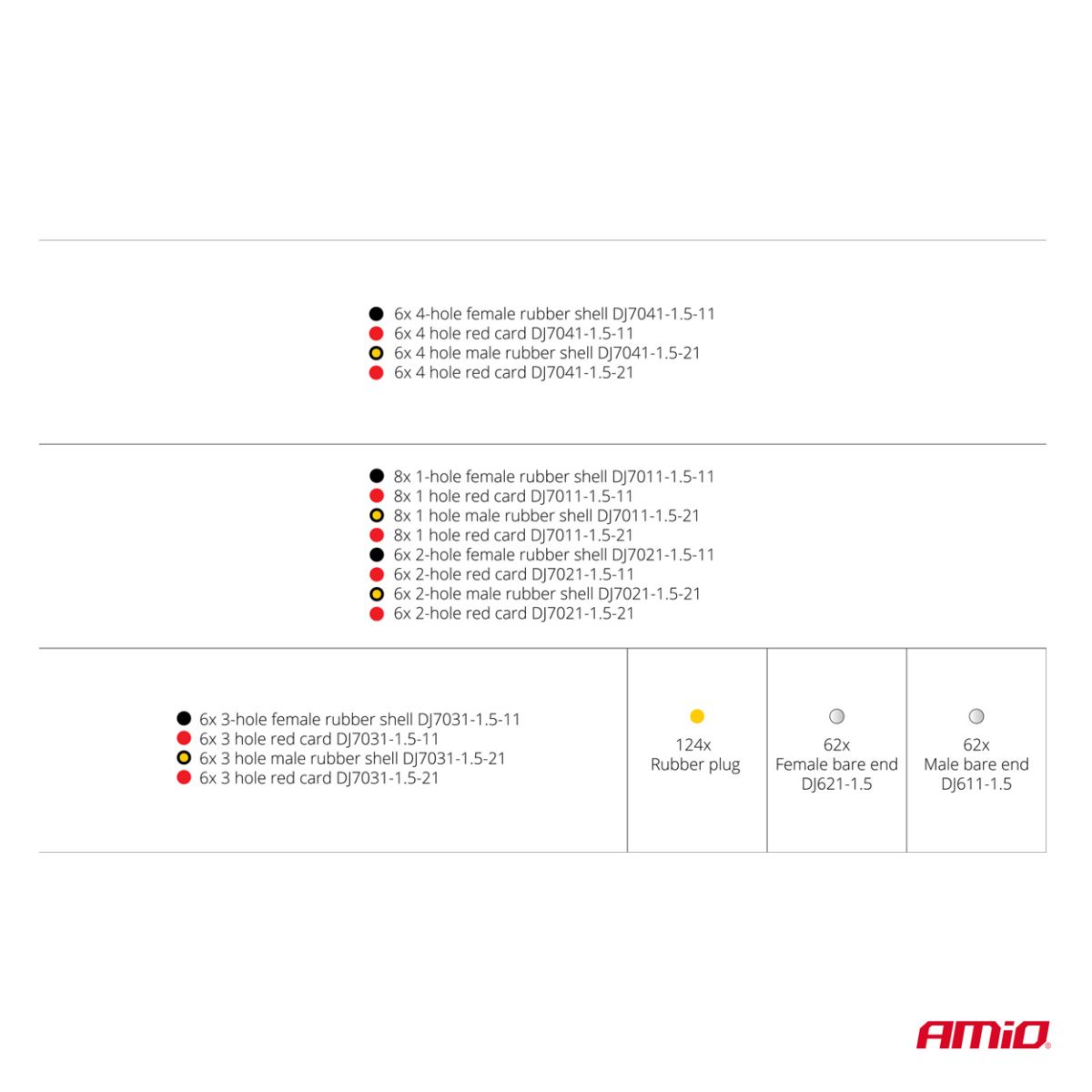

Kit includes:

-1Pin (8 sets) 8 x housing connector, 8 x female housing connector, 8 x male pin 8 x female pin, 16 x silicone waterproof connector

-2Pin (6 sets) 6 x male housing connector, 6 x female housing connector, 12 x male pin, 12 x female pin, 24 x silicone waterproof plug

-3Pin (6 sets) 6 x male housing connector, 6 x female housing connector, 18 x male pin, 18 x female pin, 36 x silicone waterproof plug

-4Pin (6 sets) 6 x male housing connector, 6 x female housing connector, 24 x male pin, 24 x female pin, 48 x silicone waterproof plug

-22 components

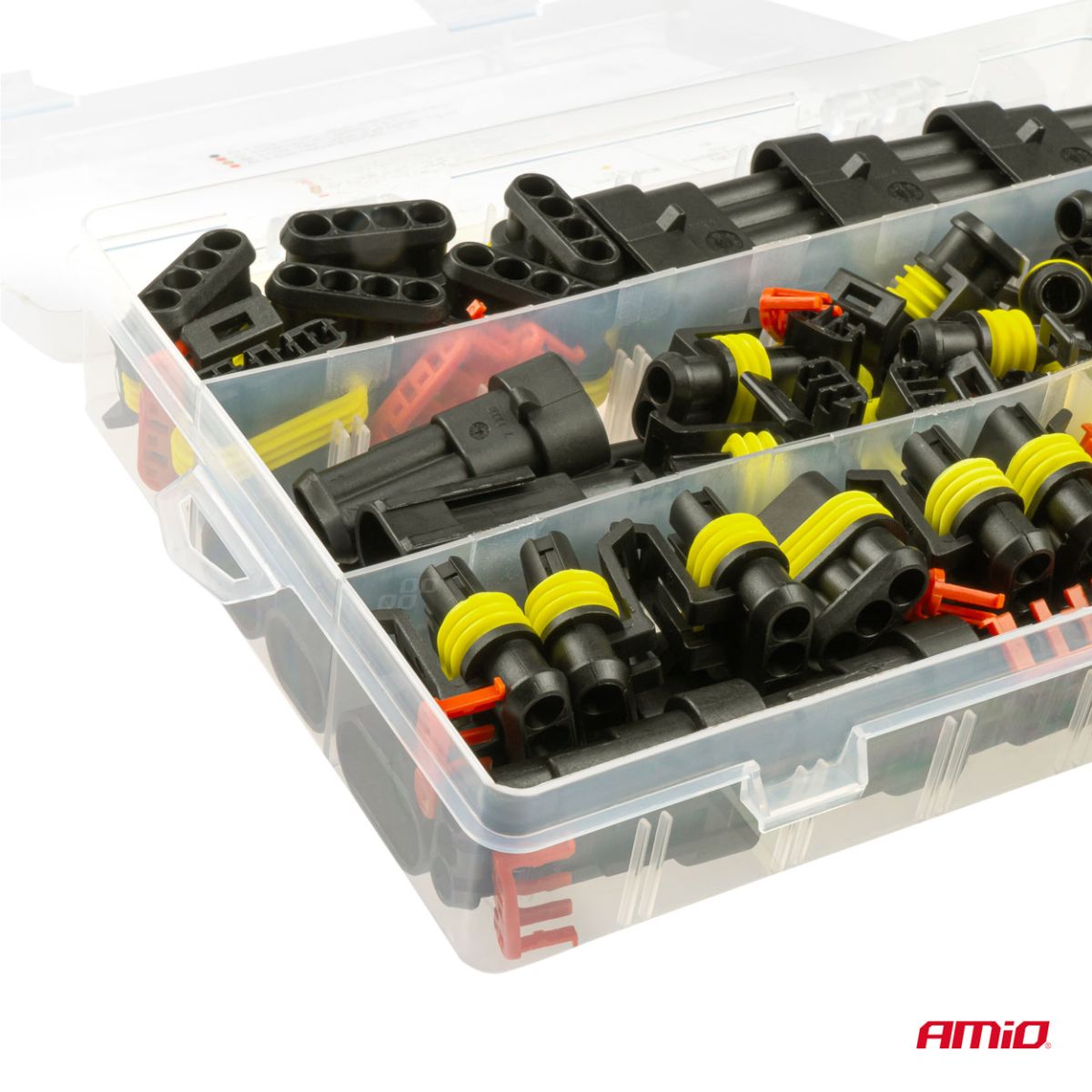

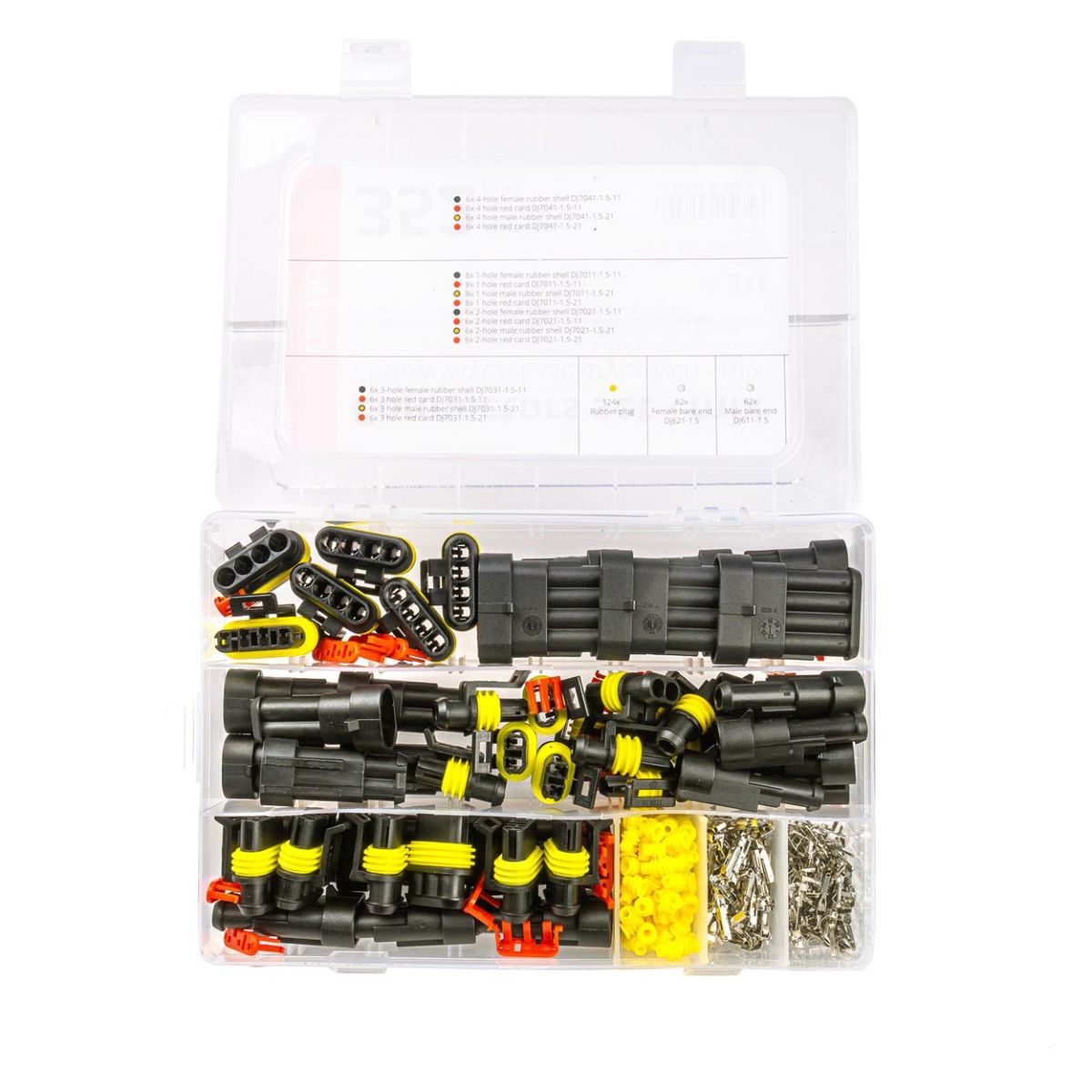

All packed in a transparent plastic case.

nbsp;

Specifications:

-Number of components 352

-Operating temperature (-40deg;C) to (+125deg;C)

-Rating current 14A

-Max. voltage 24V

-Protection class IP67

-For conductors 0.5 - 1.5 mm^2

-Casing material polyamide 6.6
