Termo vadu savienotāji

CONNECTORS TUBES SHEATHS

TERMOCURICAL WITH TIN 100 pieces

-Easy one-step connection of wires

-Soldering, insulating and sealing in 3 steps in one go

-Polyolefin tube outside and tin inside

-Solder and gasket and advanced waterproofing function

-Polyolefin butt shrink joints improve pullout strength, provide sealing, strain relief, cable control and insulation

-Packaged in robust bulk packaging for easy segregation.

nbsp;

Durable - excellent tensile strength and mechanical damage resistance; Ideal clear heat shrink tubing for tensile strength; High flexibility.

Tin inside - for best results, use hot air until it reduces in size and dissolved glue, fills gaps in the tee. Constantly rotate the connector, while heating, so that the tee is evenly heated.

Waterproof - Polyolefin tubing on the outside and hot melt adhesive on the inside provides excellent water resistance, can be ideal for marine and automotive, domestic and electronics applications.

-Minimum soldering temperature to melt: 138 deg; c

-Minimum shrink temperature: 80 deg; c

-Operating temperature:-55 ℃ - 125 ℃

nbsp;

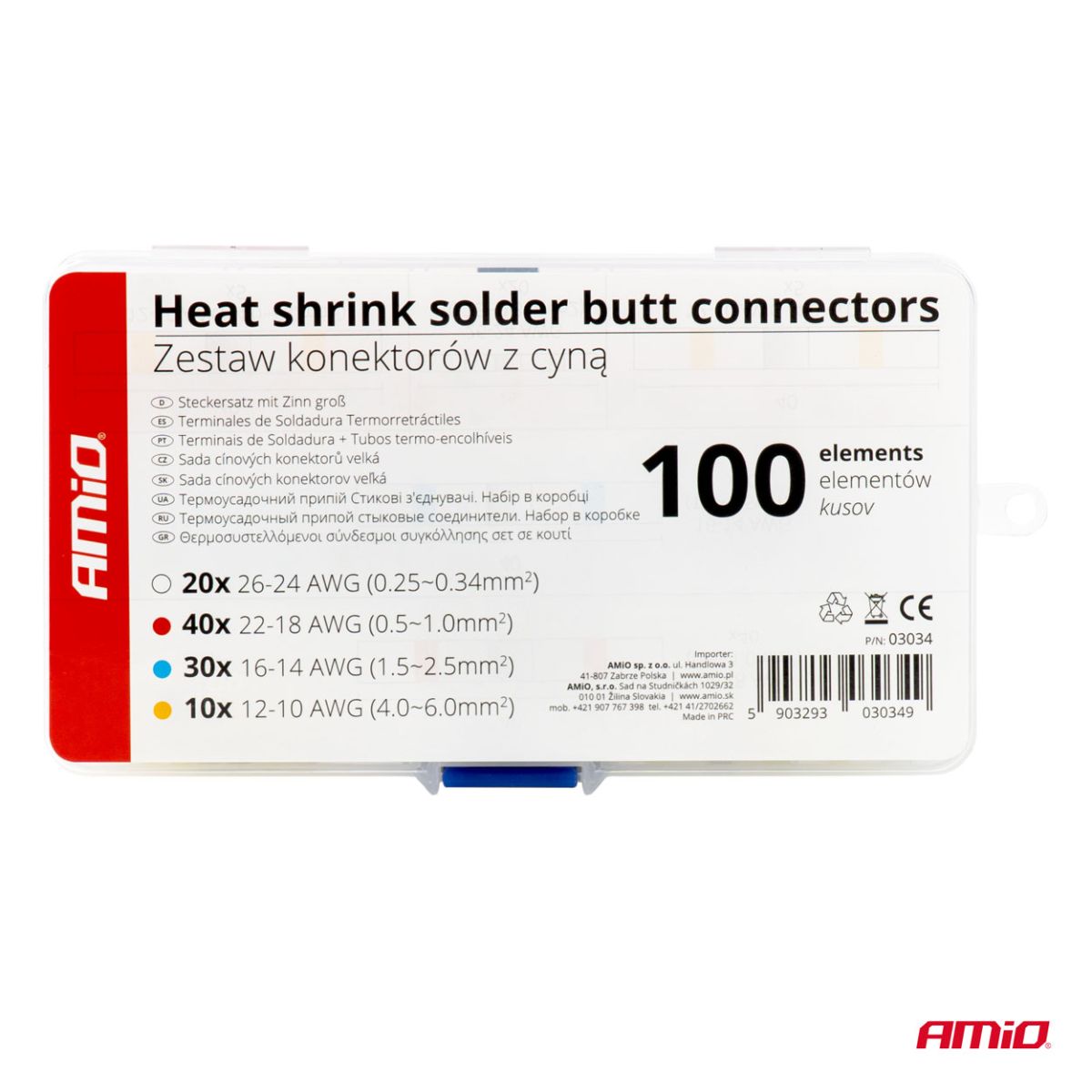

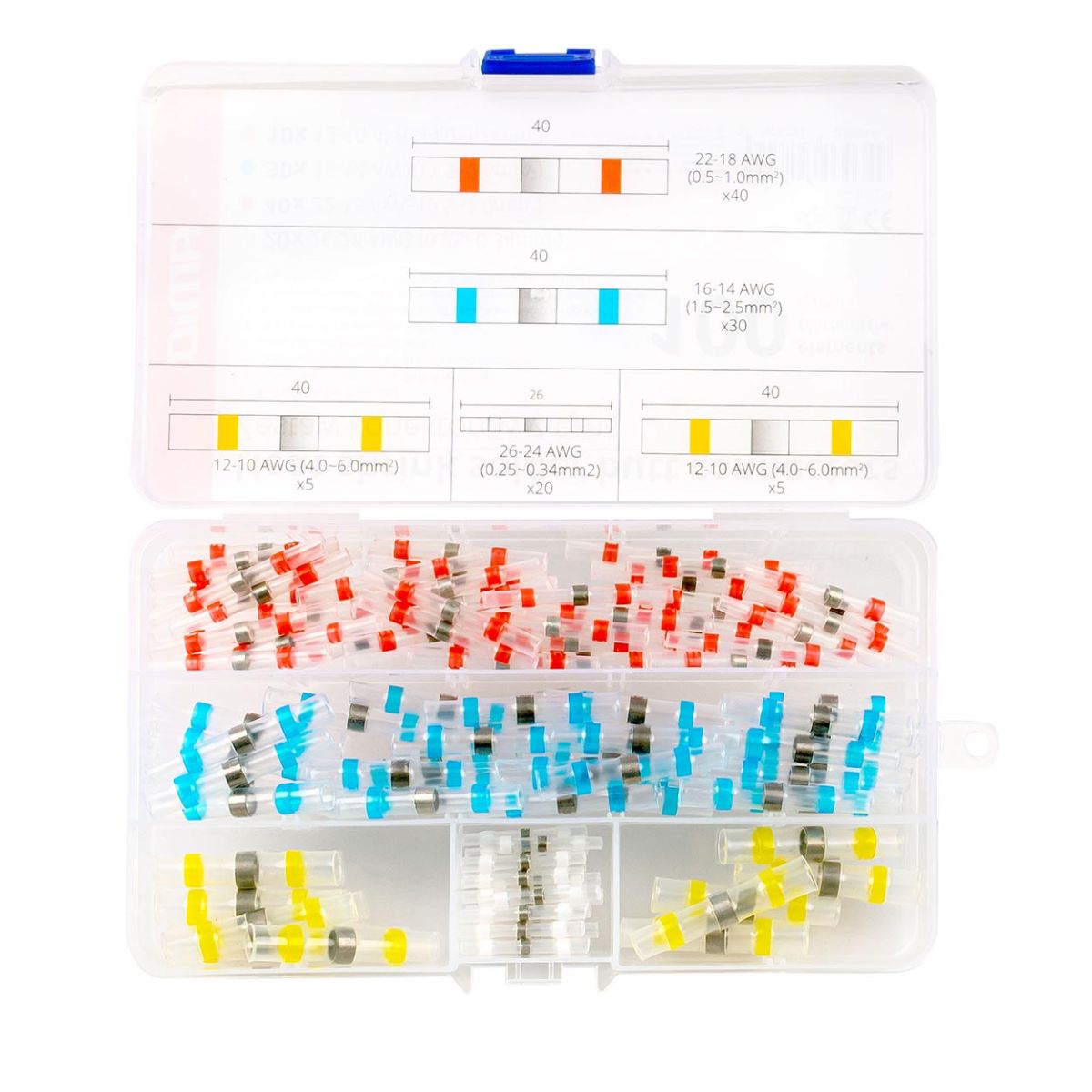

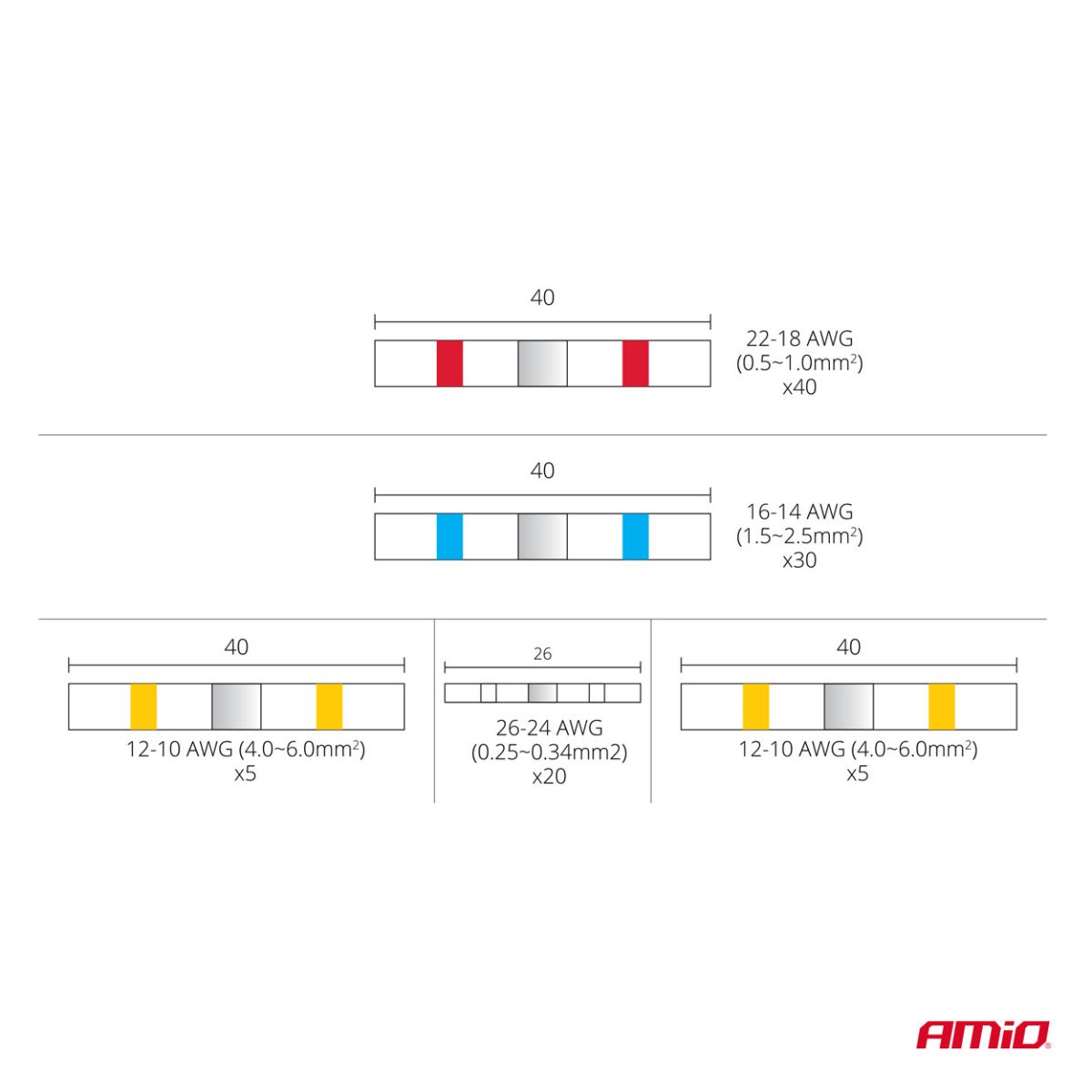

Electrical conductor diameter:

-White: 0.25-0.34 sup2; mm - 20 pcs.

-Red: 0.5-1.0 sup2; mm - 40 pcs.

-Blue: 1.4 -2.5 sup2; mm - 30 pcs

-Yellow: 4.0-6.0 sup2; mm - 10 pcs

nbsp;

Taille des connecteurs thermoreacute;tractables :

-Rouge : 3,0 mm de diamegrave;tre

-Bleu : diamegrave;tre de 5,0 mm

-Blanc : diamegrave;tre de 1,5 mm

-Jaune : diamegrave;tre 6,0 mm
