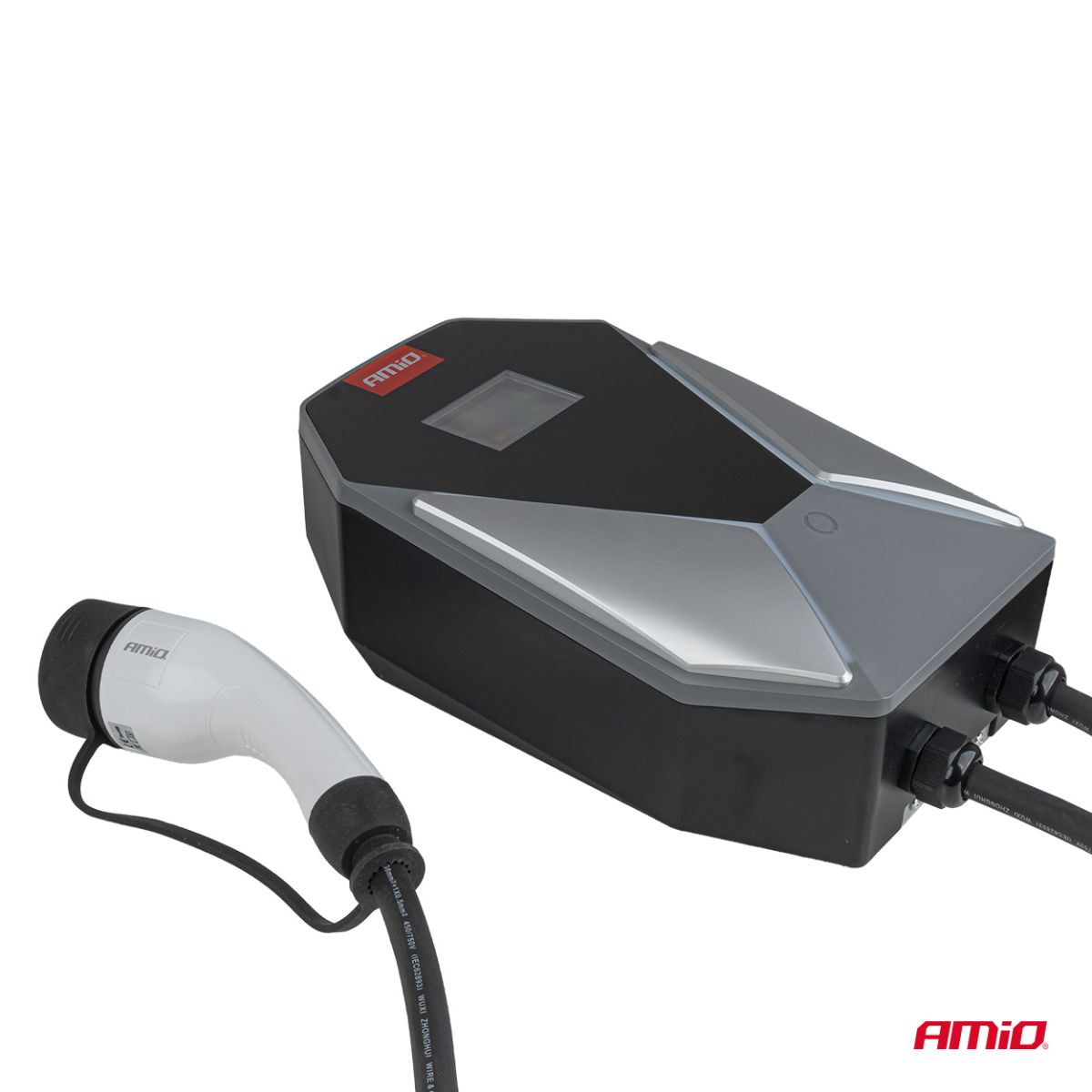

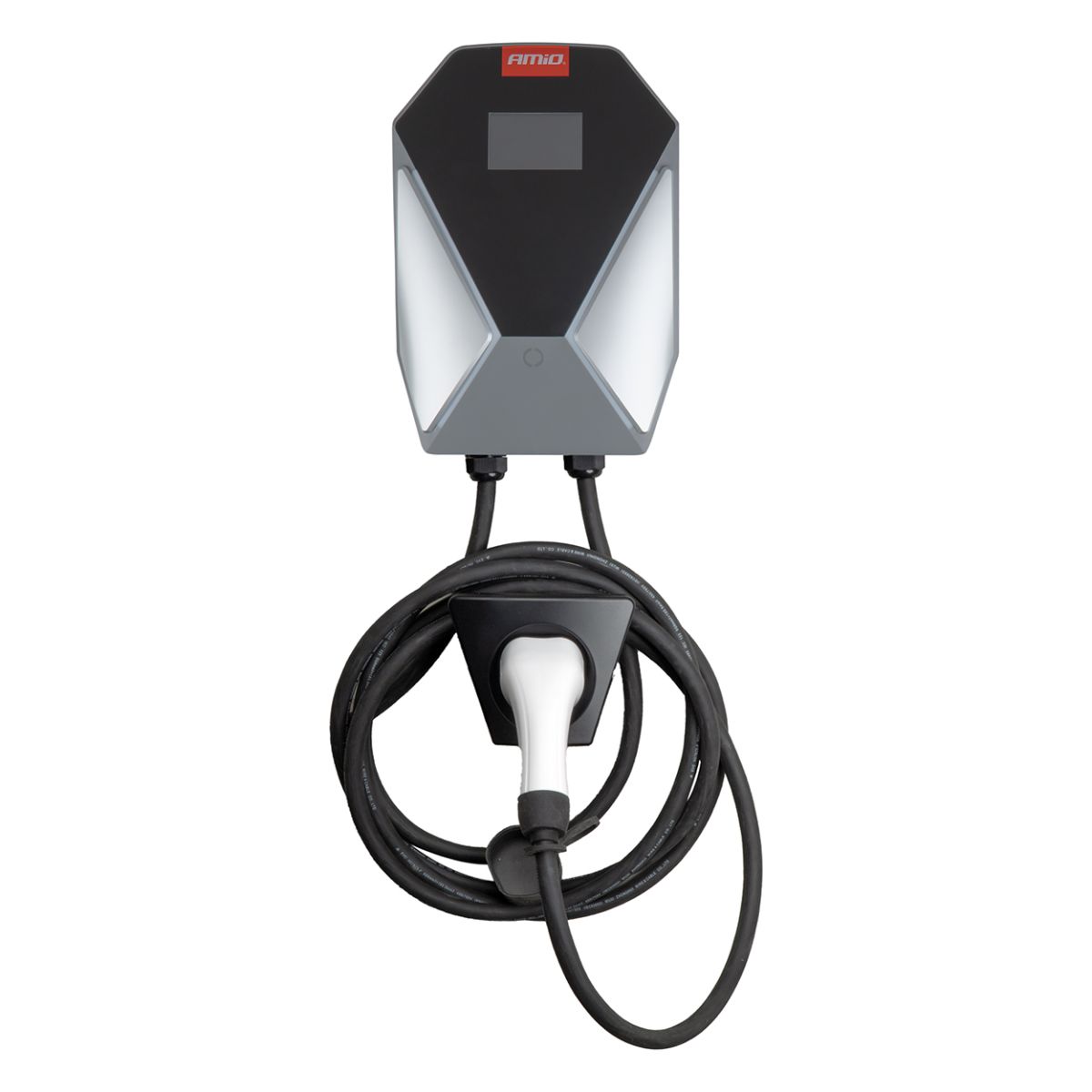

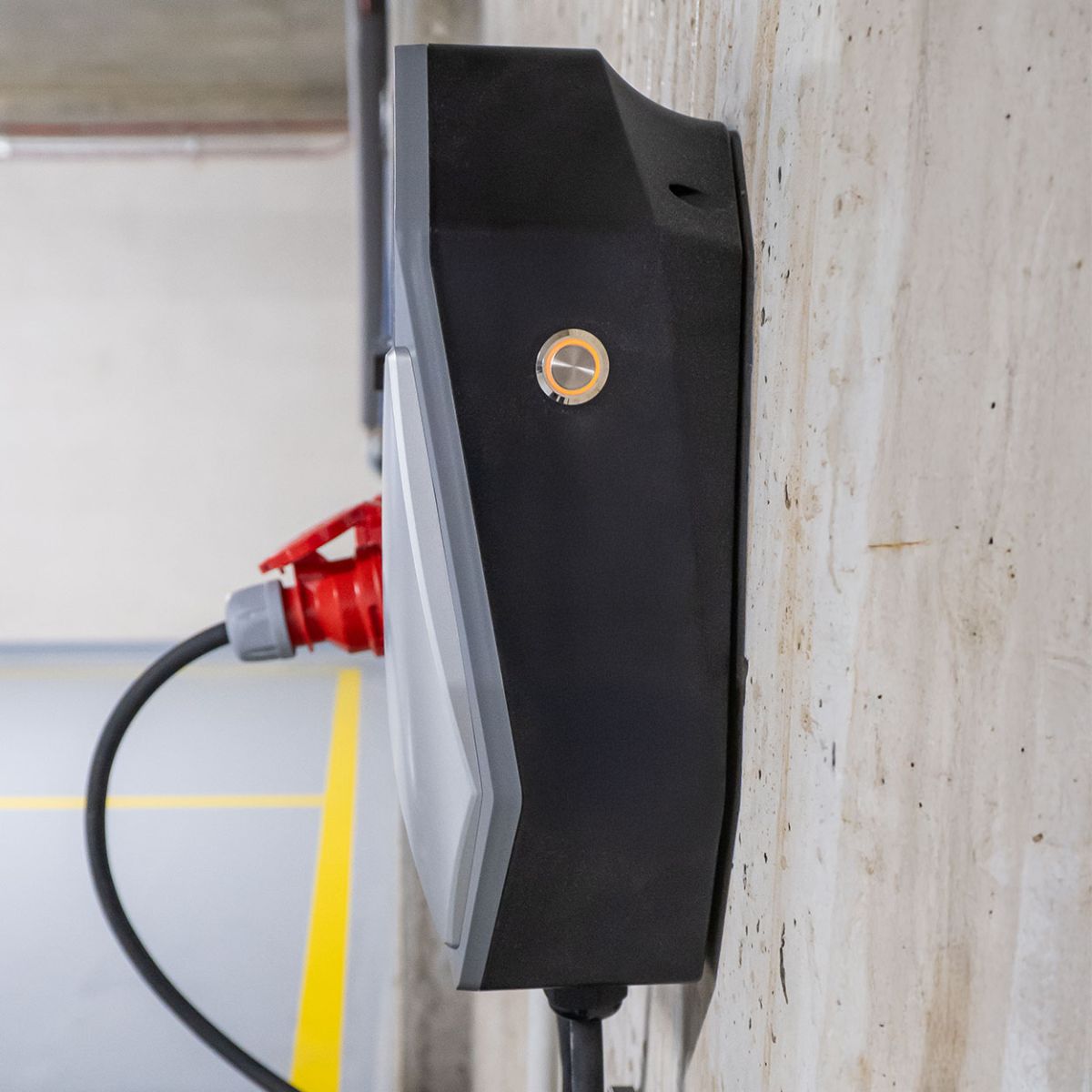

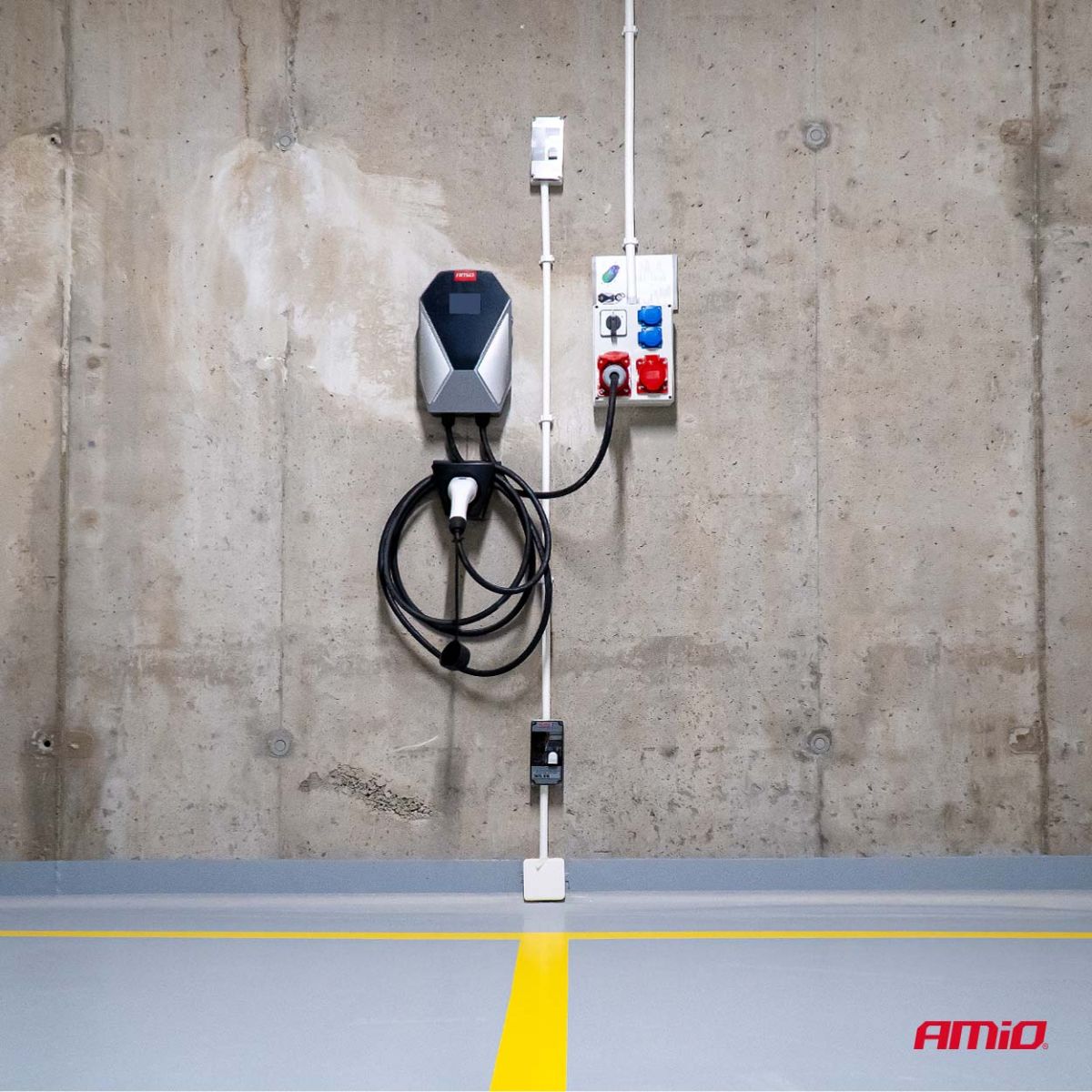

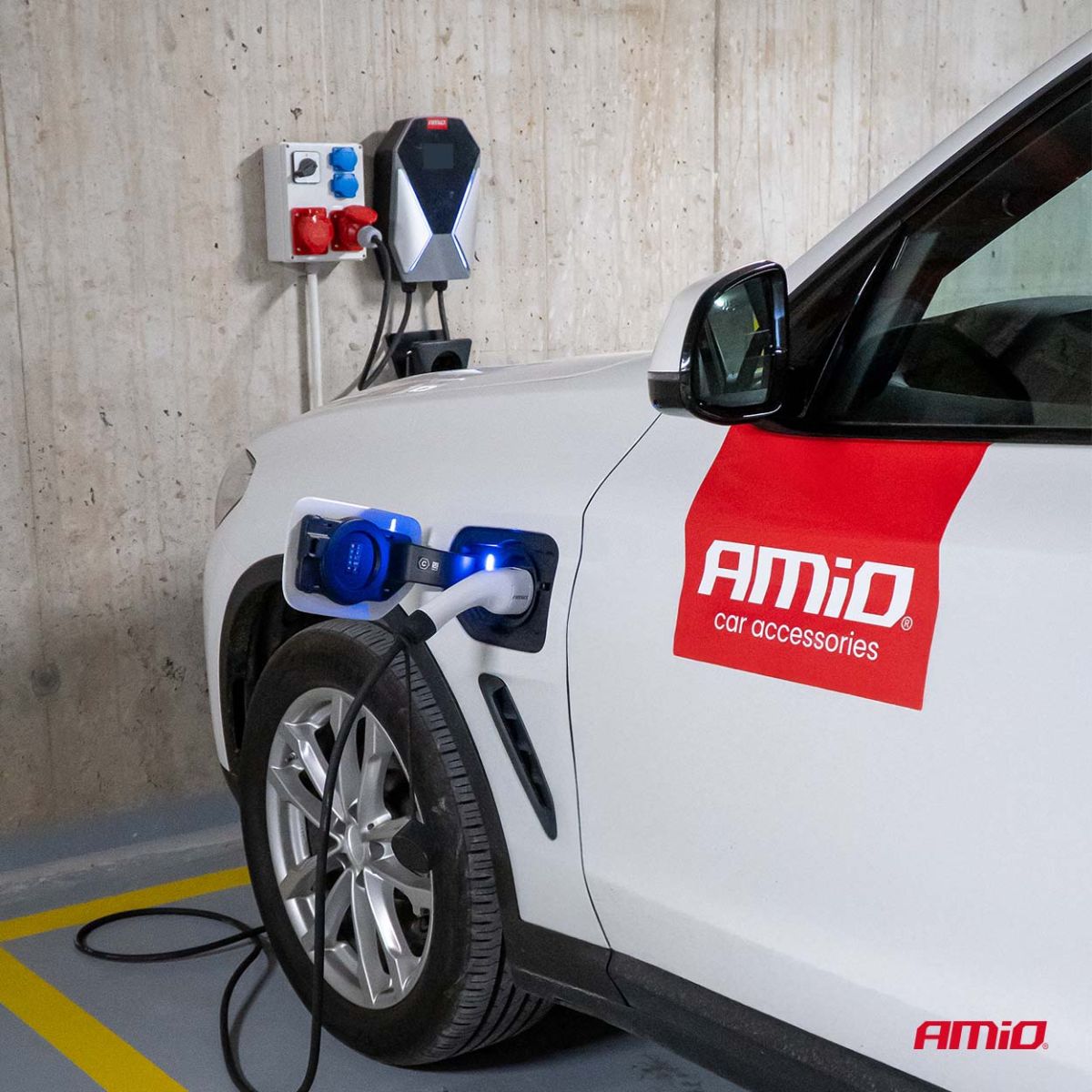

This 11 kW wall-mounted electric vehicle charger is a three-phase device designed for professional AC installations in commercial, fleet, and residential applications. It combines high reliability, compliance with safety standards, and the convenience of everyday use.

nbsp;

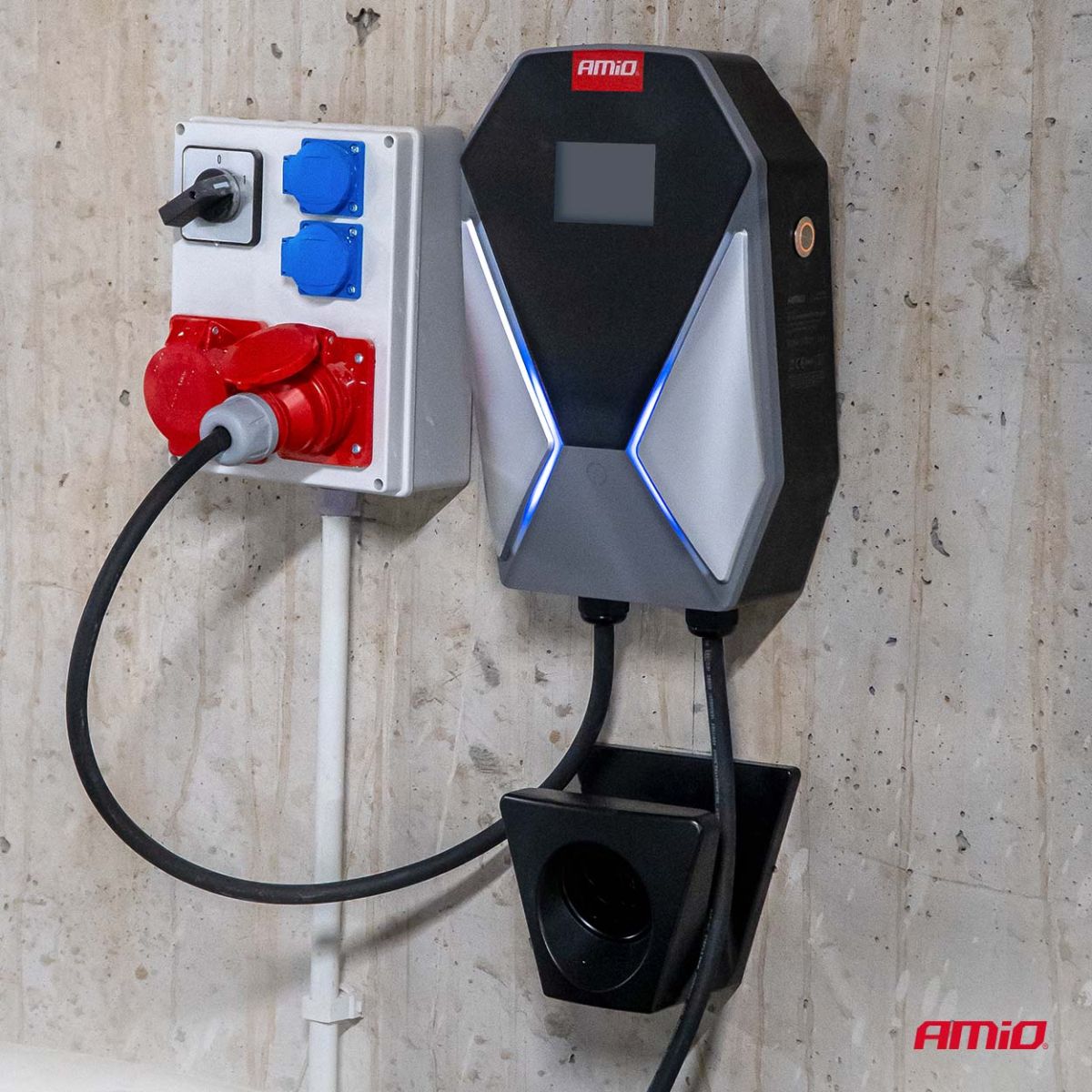

The device operates on a three-phase 400V system at 16A (50/60 Hz), ensuring stable and efficient charging of electric vehicles. The built-in LCD display allows for real-time monitoring of operating parameters, providing greater control over the charging process.

nbsp;

The extensive protection system includes:

bull; differential protection (AC/DC, 0.2 mA sensitivity),

bull; overload protection,

bull; overvoltage and undervoltage protection,

bull; short circuit protection,

bull; earth leakage protection,

bull; grounding monitoring.

nbsp;

The charger meets the requirements of the IEC62752 and IEC62955 standards. The integrated RN8302B energy measurement module ensures high energy measurement accuracy (lt;0.1% error, compliant with classes 0.5S and 0.2S), enabling precise energy billing.

nbsp;

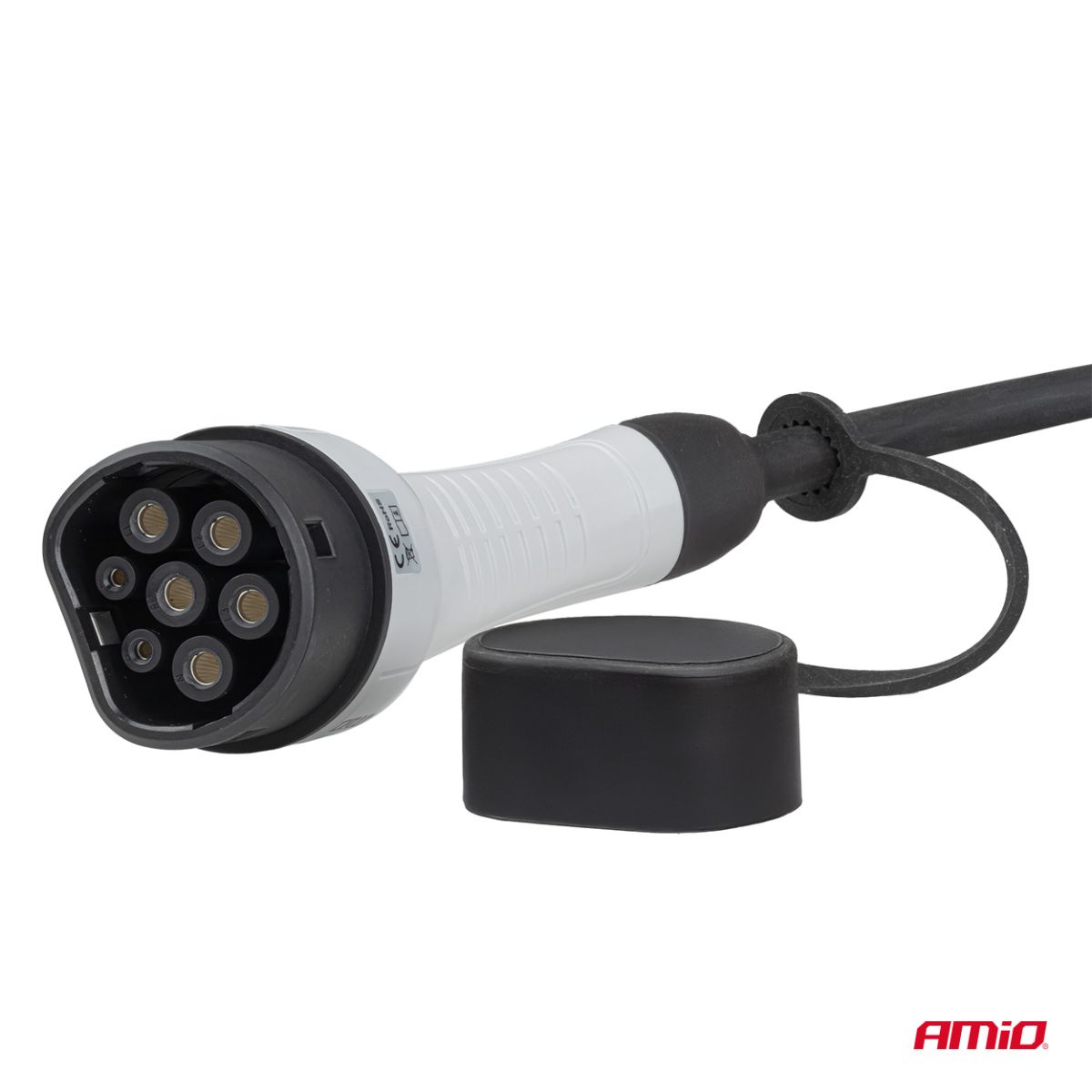

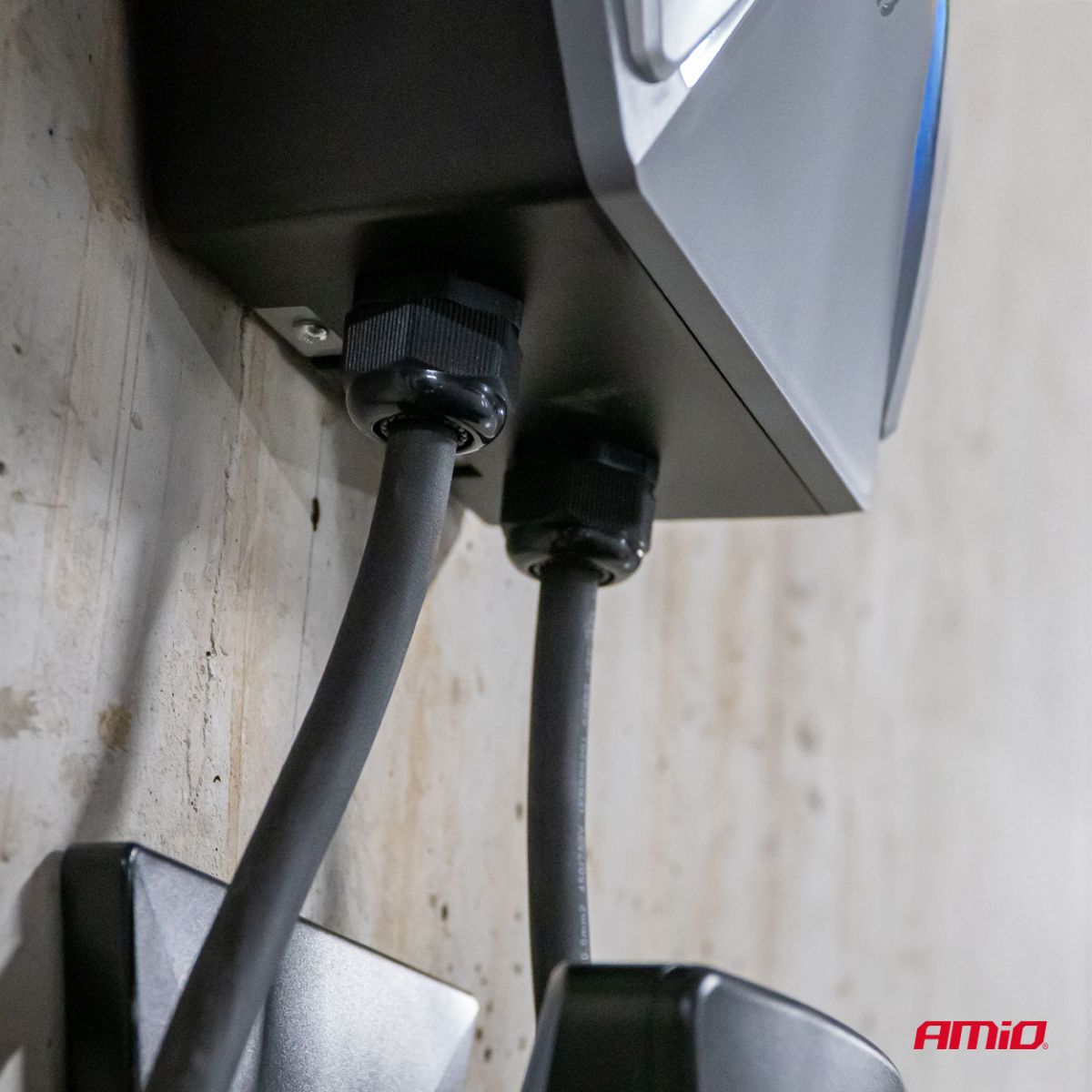

The IP66-rated housing and IP55 plug provide high resistance to environmental conditions, enabling safe operation both indoors and outdoors. The device operates in a temperature range of -30deg;C to +50deg;C, with a humidity range of 5ndash;95%, and at altitudes up to 2000 m above sea level.

nbsp;

Technical parameters:

bull; Power: 11 kW

bull; Voltage: 400V

bull; Current: 16A

bull; Type: AC, three-phase

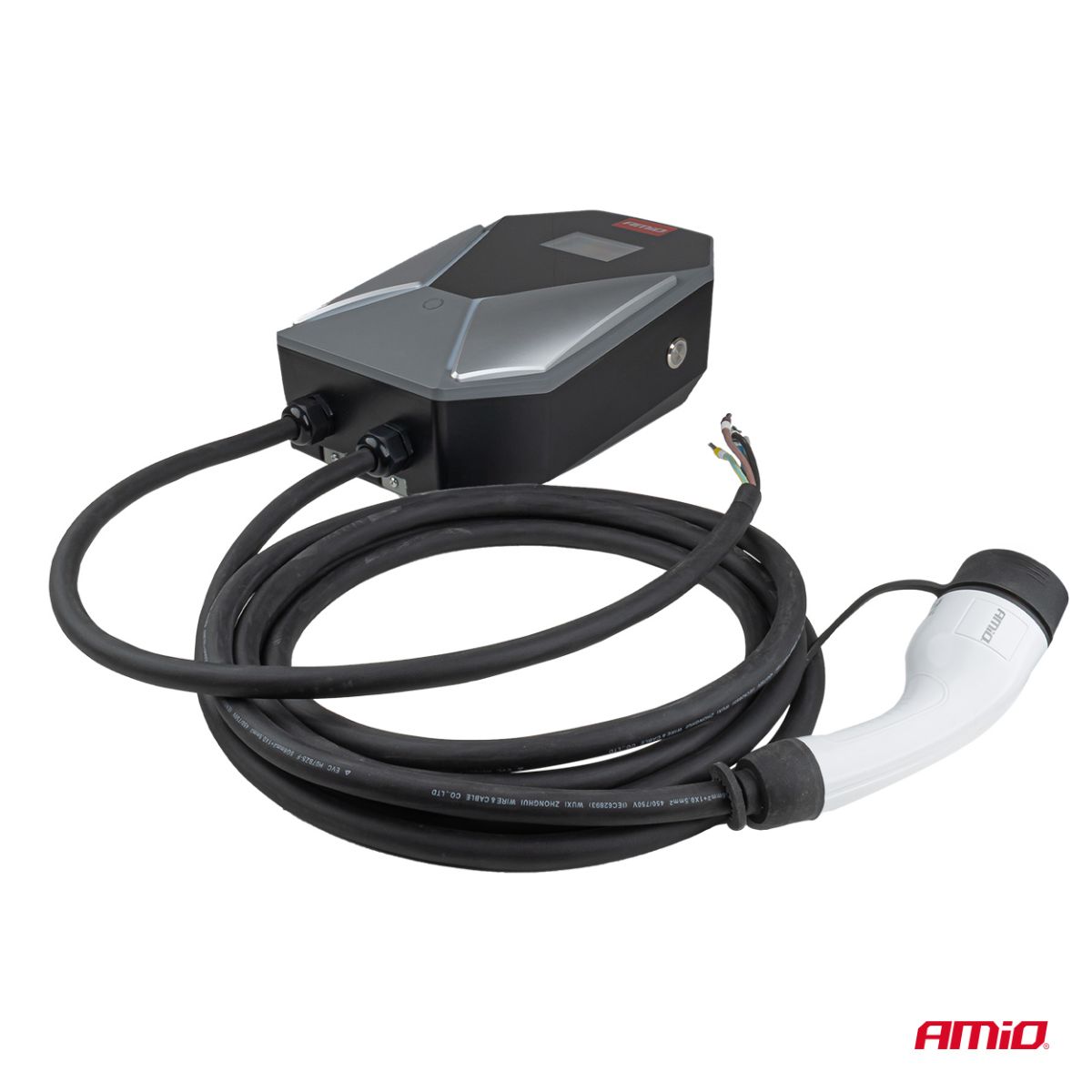

bull; Charging cable length: 5 m

bull; Power cable cross-section: 5 times; 2.5 mmsup2;

bull; Short circuit current: 1500 A (IEC 62752:2016 + AMD1:2018)

nbsp;

The device is designed for intensive use, ensuring high durability and long-term stability.

nbsp;

Thanks to the combination of advanced safety features, high measurement precision, and convenient operation, the charger is a practical solution for both commercial installations and private users looking for reliable and safe electric vehicle charging at home or in the office.
